Chevrolet Camaro ZL1 2012 - 2013

The 2012 Chevrolet Camaro ZL1’s supercharged 6.2L engine is SAE-rated at 580 horsepower (432 kW) and 556 lb.-ft. of torque (754 Nm) – making it the most-powerful production Camaro ever. The ZL1’s outstanding power is complemented by advanced powertrain and chassis technologies, including exclusive Performance Traction Management and third-generation Magnetic Ride Control.

“The Camaro ZL1 delivers supercar performance and technology in the sports-car segment,” said Al Oppenheiser, Camaro chief engineer. “For sheer power, the ZL1 delivers more horsepower than a Ferrari 458, more torque than an Aston Martin DB9 V12, and a better power-to-weight ratio than a Porsche 911 Carrera GTS.

“The Camaro ZL1 also features exclusive chassis and traction technologies,” Oppenheiser said, “to offer the best of all worlds – including balanced handling for the track, acceleration for a drag strip, and the comfort of a daily driver.”

The 2012 Camaro ZL1’s surpasses the advertised power of the legendary 1969 Camaro ZL1’s 427 cubic-inch big block by more than 150 horsepower (112 kW) – while meeting modern emissions requirements. And, the new ZL1 is backed by General Motors’ five-year / 100,000-mile powertrain warranty.

“The torque is going to make the ZL1 a car you won’t want to get out of,” said John Rydzewski, assistant chief engineer for small block engines. “Not only will the ZL1 have more power and torque than the competition, we’re making it available with an optional automatic transmission, to appeal to a wider group of sports car enthusiasts.”

The ZL1 name is derived from the all-aluminum racing engine of the same name, which was developed in the late 1960s and installed into a handful of regular-production 1969 Camaros. Only 69 were built with the engine, but they’ve achieved mythical status among enthusiasts, as they represented the pinnacle in Camaro performance – until the new ZL1 was introduced.

“The ZL1 is great at everything and we’re very proud of that,” said Tony Roma, Camaro ZL1 program engineering manager. “You can take it to the drag strip and run 11-second quarter-miles all day long. You can also take it to a road course, where it’s balanced, handles well, and does exactly what you want – including lapping Virginia International Raceway’s Grand Course in under three minutes – and yet the ZL1 is sophisticated enough to use as a daily driver. It’s a supercar you can drive every day.”

Supporting the dynamic track and street performance of the ZL1 is the LSA 6.2L supercharged engine, which is rated at 580 horsepower (432kW) and 556 lb.-ft. of torque (754 Nm), with specific features for the Camaro.
The all-aluminum engine is part of GM’s legendary small-block engine family. For a solid foundation, the engine’s bottom end uses six-bolt main bearing caps that clamp and lock in the forged steel crankshaft to a deep-skirt cylinder block.

A 1.9L Roots-style blower uses an efficient four-lobe rotor set and compact intercooler to deliver boosted air into the high-flow cylinder heads. The engine also draws its breath through a unique induction system, with a low-restriction air filter, dual inlet paths and enhanced airflow through the supercharger housing.
Because the Camaro ZL1 uses electric power steering, the engine does not incorporate a conventional hydraulic power steering pump on its accessory drive system. This enhances performance, because no engine power is used to turn a steering pump pulley.

The ZL1 is offered with a six-speed manual or automatic transmission. The Tremec TR6060 “MG9” manual features 30 percent more torque capacity than in the Camaro SS. The higher torque capacity results from a strengthened output shaft, high-strength rear housing, and additional roller bearing. The MG9 has also been tuned for improved shift feel, with a dual-mass flywheel, twin-disc clutch, and triple synchros for smooth, precise shifts.
Similarly, the Hydra-Matic 6L90 automatic has been strengthened to handle the torque and horsepower produced by the 6.2L supercharged small-block. It features a strengthened input gearset with two additional pinion gears, additional clutch plate, and a strengthened output shaft and gearset. To make the ZL1 perform equally well on street and track, the 6L90 features three distinct drive modes:

Performance Traction Management (PTM) is standard on the Camaro ZL1 coupe. It integrates the exclusive third-generation magnetic ride control – with driver-selectable Tour and Sport modes – launch control, traction control, electronic stability control and electric power steering response to enhance performance.
With PTM, the launch control feature (manual transmission only) automatically modulates engine torque for the best-possible acceleration without excessive wheel spin. When the driver pushes the throttle to the floor, the system holds a predetermined engine speed until the driver releases the clutch. Then, the system modulates engine torque 1,000 times per second to maximize the available traction. Similarly, on a road course, the driver can apply full throttle when exiting a corner and Performance Traction Management will automatically manage acceleration dynamics to maximize exit speed based on available traction.

The drivetrain is unique to the Camaro ZL1 and is composed of a stronger driveshaft and rear axle system, featuring a larger, stronger 9.9-inch cast iron differential housing, stronger axles and heavy-duty limited-slip differential. This patent-pending system is designed to ensure that ZL1’s tremendous power is delivered smoothly to the ground. A rear-differential cooler reduces temperatures in the differential by more than 100 F.
Asymmetrical half-shafts – a 60mm hollow shaft on the right and a 33mm solid shaft on the left – offer different torsional stiffness rates, which work with the limited-slip differential to minimize the chance of wheel hop on hard launches. Also, the rear stabilizer bar has drop links positioned outboard of the control arms, for more effective body roll control in turns, with crisp response to driver commands.
Camaro ZL1 features an advanced track-capable braking system, developed in conjunction with Brembo. Large 14.6-inch (370 mm) two-piece front rotors have six-piston calipers; the 14.4-inch (365 mm) rear rotors have four-piston calipers.
ZL1-specific 20-inch forged aluminum wheels, which are lighter than the 20-inch wheels used on the Camaro SS, are used with new Goodyear Eagle F1 Supercar G:2 tires developed specifically for the ZL1.

Most production cars are designed with some lift at speed slip through the air for improved fuel economy – but to maintain stability and steering response at the speed the Camaro ZL1 is capable of achieving, it features an aerodynamic design that generates downforce to press the tires against the track.
The aerodynamics helped refine the exterior design to generate downforce for improved handing at speed while minimizing the amount of increased drag that could reduce fuel economy and the vehicle’s top speed. With the computer-assisted design recommendations, full-scale clay models and full-size prototypes were tested in the General Motors’ wind tunnel.
Outside of the aerodynamics laboratory, engineers tested the ZL1’s aero aids on GM’s Milford Road Course, other race tracks and the unique “rolling road” wind tunnel at the Auto Research Center in Indianapolis. When the dust settled and the wind-tunnel blades came to a stop, the Camaro ZL1 produced 65 pounds of downforce at an equivalent 150 mph (241 km/h) – compared to 200 pounds of lift in a Camaro SS – which was offset by an increase of only 40 counts of additional aerodynamic drag.

Chevrolet Camaro ZL1 - SPECIFICATIONS:

Engine :

Type: 6.2L Gen IV V-8 Small Block

Displacement:

6162 cc (376 ci)

Compression ratio:

9.1:1

Valve configuration:

Overhead valves (two valves per cylinder)

Valve lifters:

Hydraulic roller

Bore x stroke:

103.25 x 92 mm

Fuel system:

sequential fuel injection

Fuel type:

premium required

Maximum engine speed (rpm):

6200

Emissions controls:

catalytic converter

three-way catalyst

positive crankcase ventilation

Horsepower: (hp / kW )

580 (432) @ 6000 SAE certified

Torque: (lb-ft / Nm )

556 (754) @ 4200 SAE certified

Block:

cast aluminum

Cylinder heads:

A356-T6 rotocast cast aluminum

Intake manifold:

cast aluminum

Exhaust manifolds:

cast stainless steel

Main bearing caps:

nodular Iron

Crankshaft:

forged steel

Camshaft:

hollow steel

Connecting rods:

forged powder metal

Additional features:

1.9 L/rev supercharger



integrated single coolant to air intercooler



piston oil spray cooling



direct mount ignition coils

Transmissions :



Tremec TR6060 six-speed manual



HydraMatic 6L90 six-speed automatic

Chassis / Suspension

Front: double-ball-joint, multi-link strut; direct-acting stabilizer bar; progressive-rate coil springs; with Magnetic Ride Control

Rear:

4.5-link independent; progressive-rate coil springs over shocks; stabilizer bar; with Magnetic Ride Control

Steering type:

electric power steering with variable-ratio, variable-effort rack-and-pinion

Brakes


Type:

four-wheel disc w/ ABS; ventilated two-piece front and one-piece rear rotors; six-piston fixed Brembo aluminum front and four-piston rear calipers

Exterior dimensions


Wheelbase (in / mm):

112.3 / 2852

Overall length (in / mm):

190.4 / 4836

Overall width (in / mm):

75.5 / 1918

Overall height (in / mm):

54.2 / 1376

Track, front (in / mm):

63.7 / 1618

Track, rear (in / mm):

63.7 / 1618

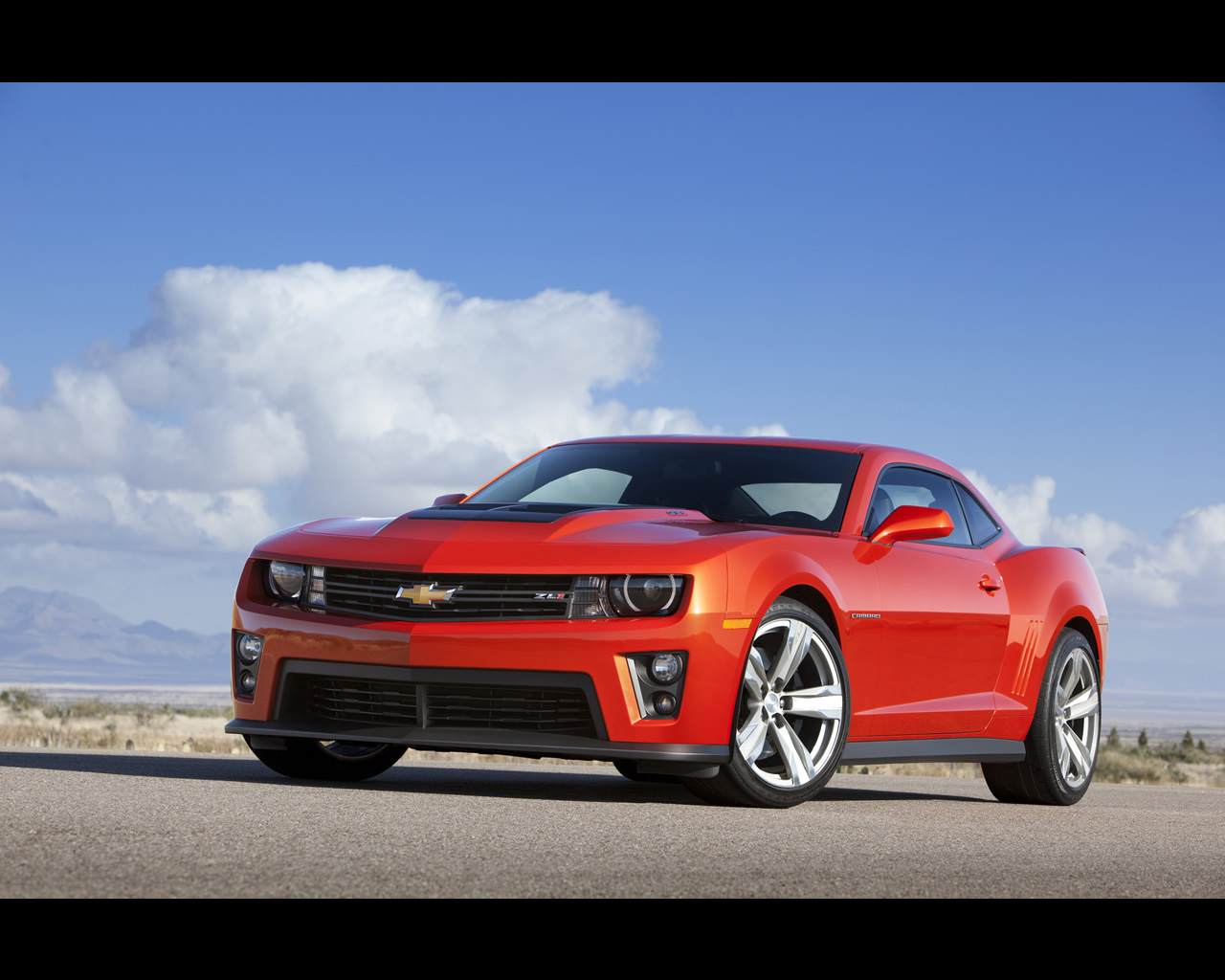

wallpapers of the Chevrolet Camaro ZL1 2012
