Mitsubishi CA-MiEV Electric Suburban Automobile and GR-HEV Sport Utility Diesel Hybrid Truck Concepts 2013
Ever since it started R&D on electro-mobility back in 1966, today’s Mitsubishi Motors Corporation (MMC) always considered that electric vehicles (EV) should eventually become long-term core products – a view vindicated by recent concerns over global warming.
From the pioneering i-MiEV in 2009 and a self-imposed objective of 20% of EV-based cars by 2020, MMC has already made significant steps in this direction as demonstrated with the all-new Outlander Plug-in Hybrid Electric Vehicle (“PHEV”) and its most innovative “Dual Design” architecture.
Expanding further, Mitsubishi Motors now explores the full electro-mobility engineering palette – Pure Electric (EV), Hybrid Electric (HEV), Plug-in Hybrid Electric (PHEV) - hinted at through two concept cars world-premiered at the 2013 Geneva Motor Show, next to the New Outlander PHEV, one of which are the Concept CA-MiEV electric vehicle and the Mitsubishi GR-HEV Sport Utility Truck Concept.
Mitsubishi CA-MiEV Suburban Electric Car Concept 2013
Supported by three years of i-MiEV global customer feedback since 2009 as well as continuous progress in battery technology and electric drivetrain, MMC now considers taking pure EVs beyond a mostly urban environment with a next generation compact EV such as this Concept CA-MiEV.
Whilst not planned for production, this concept car was intended as a showcase of the various
technologies MMC intends to introduce mid- to long-term across its range of global vehicles.
In particular, this demonstrator can rely on next generation EV systems and high density batteries, lightweight as well as advanced aerodynamics to offer a 300 km driving range (or about one week of driving for an average European driver (Average driving distance in Europe: 14,000 km/year – source: ACEA) , perfectly suited for suburban & country daily life.
Further innovative real-life features include magnetic resonance wireless charging technology, smartphone activated functions.
CA-MiEV officially goes for Compact & Advanced technology- MiEV.
Mitsubishi Motors first true concept car in years, Concept CA-MiEV can be understood as a declaration of intent, stressing the return to Engineering’s primacy within the corporation to better serve (global) customer demand.
Already hinted at through the first products of MMC’s latest product cycle (pioneering 44g/km Outlander PHEV), this creed will be further adhered to with the introduction of next generation technologies throughout the range over the coming years.
Design will play no small part in this new development with a clear emphasis on aerodynamic performance. After Global Small’s segment record 0.27 Cd*, the 5-door Concept CA-MiEV compact hatchback takes the baton with a Cd target of 0.26. Pebble-sleek, the arrow-shaped Concept CA-MiEV brings a degree of high tech sleekness to small car design, all the way to its unusual canopy sloping rear roof line.
Highly efficient (full flat floor, rear-view cameras, minimal air intakes, rear diffuser,…), Concept CAMiEV is also full of dramatic detailing – from the boomerang-sculptured front and rear lights to the ascending side character line enclosing the rear wheel arches to create a strong forward motion effect.
To power Concept CA-MiEV, MMC inaugurates its next generation high efficiency drive-train, including:
- All-in-One integrated power unit (80 kW motor + inverter + charger) - to help with energy
management, packaging and weight reduction.
- Compact flat battery pack – to help with packaging (esp. for possible later applications like range extender) and better long term battery performance.
- Magnetic resonance wireless charging technology – to help with user-friendliness, as jointly announced in September 2011 by WiTricity Corporation, IHI Corporation and Mitsubishi Motors Corporation and currently under investigation and testing.
- High density energy Lithium-ion batteries – to help with energy efficiency and also with packaging (28 Kwh available).
Roomy, sleek, lightweight and efficient, a future electric vehicle like Concept CA-MiEV – but also any future ICE, HEV or PHEV Mitsubishi vehicle for that matter) shall also be connected to the rest of the planet, infrastructure permitting, with telematics features such as:
- Automatic e-mailing in case of theft
- Automatic e-calling in case of an emergency
- Remote controlling (engine start/no start, panic alarm, door locking)
- Data transfer from smartphone to in-car system
- Remote energy monitoring or pre-heating for EVs and PHEVs (already featured with Outlander PHEV)
Mitsubishi CA-MiEV Suburban Automobile Concept Specifications
Dimensions (L x W x H) - Wheelbase
4050 x 1775 x 1550 mm - 2550 mm
|Est. driving range
Battery Type and Capacity
| Lithium-ion , 28 kWh

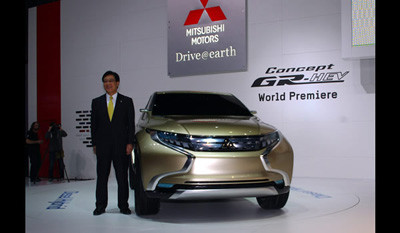

Mitsubishi GR-HEV Sport Utility Hybrid Concept 2013
If electric vehicles are to have a significant impact on the environment, they should be able to attract a wide spectrum of customers with a full palette of EV-based vehicles across the range, from small runabouts to big SUVs, each using a dedicated application of the technology (EV, HEV or PHEV)
In this respect, New Outlander PHEV has already proved that EV powertrain and long-haul D-Segment crossover are perfectly compatible.
At MMC. the next logical step will be to expand further, adapting electric componentry to the demands of an even larger, tougher, sportier vehicle with both work and leisure in mind in either mature or emerging market.
Such was the brief behind Concept GR-HEV, Mitsubishi Motors’ inaugural take at Hybrid (HEV) technology, applied for the first time to a Mitsubishi one-ton pickup truck, a format very much in demand in emerging markets and a Mitsubishi export best-seller, starting with Europe, its Number One market (with over 615,000 units, out of the 1.42 million units exported from MMTh between 1992 and 2012)
The GR-HEV designation goes for Grand Runner –HEV.
With this evocation of a possible next “Dual Design” vehicle, Mitsubishi Motors introduces an all-new proprietary HEV solution, featuring a 2.5 liter Mitsubishi Clean Diesel engine and a front-mounted electric motor, mated to an automatic gearbox – all controlled by an electronic operating system – as well as a battery pack located (and protected) within the ladder frame – further protection being provided by cross guard bars.
Simpler and more affordable than either EV and PHEV, HEV is deemed best suited to the heavy-duty daily requirements of pickup truck users and a perfect vector for MMC’s green ambitions all the way to the most remote corners of the planet with an ambitious target for CO2 emissions below 149 g/km – far better than segment average.
Beyond this specific one-ton pickup application, the addition of an electric motor to a Diesel engine brings further benefits:
• Instant response from the electric motor boosts Diesel engine accelerations
• The motor also increases high-end torque of the Diesel engine
• Quieter accelerations and high-speed cruising (within legal limits)
• Cleaner Diesel emissions
This combination can also provide pure electric power on demand with available AC supply (100V/240V), to replace a generator or to allow the use of a 100V winch for instance, as well as the ability to drive over short distances in pure electric mode.
Concept GR-HEV also uses Mitsubishi’s renown full-time 4WD technology, featuring Super All Wheel Control (S-AWC) integrated vehicle dynamics control system to deliver high stability traction and driving performance under all road conditions.
This HEV-dedicated driveline uses S-AWC to tailor output and braking to each wheel for every drive mode (2L, 4H, 4HL, 4LL) selected by the driver to help when facing difficult driving conditions:
Safer, sure-footed all-terrain performance over mud, sand, snow-covered surfaces as S-AWC
system leverages motor’s instant response and controls braking force at each wheel.
Torque regulation for instant response and excellent all-terrain performance.
Improves stability when towing.
Rugged, handsome and eminently usable, this 4WD Sport Utility HEV Truck show car was developed as a conceptual successor to a long line of one-ton Mitsubishi Motors pickup trucks – from the original 1978 Forte/L200 to today’s Triton/L200.
All successful in their time, they always stood apart with their handsome design.
Concept GR-HEV continues with this tradition adding a strong dose of aerodynamic chunkiness while escaping the square-rigged look that seems to prevail in the segment.
On the contrary, over its long 5.42 m long dual-cab body, MMC Design produced a very muscular athletic shape, highlighted by a sharp blade-like character line, starting from the headlamps and progressing to form a very dynamic upswept beltline.
Carrying over a theme first developed for today’s Triton/L200, Concept GR-HEV offers a total (pickup) look whereby the long load bed is the visual continuation of the passenger cabin, simply delimited by a graphic J-shutline, itself serving as support to integrated running boards.
Further rear, this load bed extends the 3D-sculptured shape of the cabin, whether in the wide open trapezoidal wheel arches (and their asymmetrical flat molding, suggesting motion), in the shapely tailgate or in the helix-complex rear combination lamps. With their “scattered diamond” LED design, they give an impression of precision-cut jewelry and premium quality appearance of the tail.
Topping it up, the upper structure is no less dramatic with a low roofline highlighted by twin elongated satin-finished side moldings. Arching over the cabin, they extend to flying buttresses over the backlight, connected by a twin-boom aerofoil.
As a clear statement of (tough) intent, the integrated bed cover intersects sharply all the curves
At the front, the aerodynamic blades of the grille seem milled directly from solid brass as if to shield the Three-Diamond logo, in-between the sculptured wraparound diamond-shaped headlamps – an overall effect of width, stability and solidity.
Finishing touch, Concept GR-HEV rides on dynamically styled 3-spoke alloy road wheels using lightweight non-alloy spokes. Taking Mitsubishi’s Three-Diamond corporate emblem as the design theme, they suggest strength.
Mitsubishi GR-HEV Sport Utility Truck Concept 2013 Specifications
Dimensions (L x W x H) - Wheelbase
5420 x 1930 x 1775 mm - 3000 mm
2.5 Clean Diesel engine - Single electric motor (w/AC supply function) - Automatic gearbox- 4 wheel drive
Below 149 g/km
