Toyota Mirai Hydrogen fuel cell - Enter production 2015

Toyota Motor Corporation will launch its all-new “Mirai”(1) hydrogen fuel cell vehicle (FCV) in Japan on December 15. The vehicle will be sold through "Toyota"(2) and "Toyopet"(2) dealers. In Europe, the car will be launched in selected markets in September 2015.

Toyota City, Japan -  The Mirai signals the start of a new age of vehicles. Using hydrogen - an important future energy source - as fuel to generate electricity, the Mirai achieves superior environmental performance with the convenience and driving pleasure expected of any car.
  The Toyota Mirai 2015

The Mirai uses the Toyota Fuel Cell System (TFCS), which features both fuel cell technology and hybrid technology, and includes Toyota’s new proprietary FUEL CELL Stack and high-pressure hydrogen tanks. The TFCS is more energy efficient than internal combustion engines and emits no CO2 or pollutants when driven. Drivers can also expect the same level of convenience as offered by gasoline engine vehicles, with a generous cruising range and a hydrogen refueling time of about three minutes(3).

The Mirai delivers everything expected of a next-generation car: an immediately recognizable design; driving exhilaration stemming from superior handling stability achieved by a low center of gravity; and quiet but powerful acceleration provided by the electric motor.

Hydrogen can be generated using a wide range of natural resources and man-made by products such as sewage sludge. It can also be created from water using natural renewable energy sources like solar and wind power. When compressed, it has a higher energy density than batteries, and is relatively easy to store and transport, therefore it also carries expectations for potential future use in power generation and a wide range of other applications. FCVs are able to generate their own electricity from hydrogen, meaning they can help make a future hydrogen-based society a reality, and are therefore expected to further contribute to accelerating energy diversification.

Sales Outline Europe
Launch: September 2015
Markets: UK, D, DK for 2015, more markets to be added for 2017
Annual volume: 50 – 100 cars/year in 2015 and 2016
Price: around 66,000 € + VAT (Germany)

Production Plant
Motomachi Plant, Toyota Motor Corporation

1. Toyota Fuel Cell System provides superior environmental performance and convenience

The Mirai features the TFCS, a fusion of fuel cell technology with hybrid technology.

The system provides better energy efficiency than internal combustion engines, superior environmental performance with no emissions of CO2 or pollutants when driving, and the same level of convenience and autonomy as gasoline engine vehicles, and a hydrogen refuelling time of about three minutes3.

The system uses Toyota-developed components including the Toyota FC Stack, FC boost converter, and high-pressure hydrogen tanks.

Toyota FUEL CELL Stack
The new Toyota FC Stack achieves a maximum output of 114 kW (155 DIN hp). Electricity generation efficiency has been enhanced through the use of 3D fine mesh flow channels(4) (a world first5), which ensure uniform generation of electricity on cell surfaces, providing compact size and a high level of performance, and a world-leading5 power output density of 3.1 kW/L (2.2 times higher than that of the previous Toyota FCHV-adv limited-lease model).

The amount of water on fuel cell electrolyte membranes has a substantial influence on electricity generation efficiency. Control of the amount of water is carried out using an internal circulation system for circulating the water created when generating electricity, meaning the Toyota FC Stack is a world-leading(5) system that, unlike systems used in all other previous Toyota fuel cell vehicles, does not require the use of a humidifier.

FC Boost Converter
A new compact, high-efficiency, high-capacity converter has been developed to boost power generated in the Toyota FC Stack to 650 volts. Increasing the voltage has made it possible to reduce the size of the electric motor and the number of Toyota FC Stack fuel cells, leading to a smaller, higher-performance Toyota Fuel Cell System, thereby reducing system costs.

High-pressure Hydrogen Tanks
Tanks with a three-layer structure made of carbon fiber-reinforced plastic and other materials are used to store hydrogen at a very high pressure of 70 MPa (70 megapascals, or approximately 700 bar). Compared to the high pressure hydrogen tanks used in the Toyota FCHV-adv model, tank storage has been increased by approximately 20 percent while both weight and size have been reduced to achieve a world-leading5 5.7 wt%(6).

Key Toyota Fuel Cell System (TFCS) Specifications

2. Safe and secure vehicle design with comprehensive range of safety features

FCV safety measures
The Mirai was designed with safety as a top priority, based on the basic approach of ensuring that hydrogen does not leak, and in the unlikely event that any leaks do occur, ensuring immediate detection and stoppage of hydrogen flow and preventing accumulation of hydrogen within the car body.

• Development of high pressure hydrogen tanks with excellent hydrogen permeation prevention performance, strength, and durability
• Hydrogen sensors provide warnings and can shut off tank main stop valves
• Hydrogen tanks and other hydrogen-related parts are located outside the cabin to ensure that if hydrogen leaks, it will dissipate easily

Use of features such as a structure that efficiently disperses and absorbs impact energy across multiple parts ensures a high impact safety performance that protects the Toyota FC Stack and high-pressure hydrogen tanks during frontal, side or rear impacts.

The Toyota FC Stack frame is constructed from a newly-developed thermoplastic carbon fiber-reinforced plastic, which is light, strong, and easily mass-produced. This protects the Toyota FC Stack by absorbing impact shocks from road bumps and other road interference.

A full range of advanced safety equipment appropriate for next-generation vehicles

Standard inclusion of advanced safety technologies:

• A Pre-collision System (with millimeter-wave radar) helps prevent collisions or reduce collision damage through alerts and brake control if a high likelihood of collision is detected.
• A Lane Departure Alert system uses a camera to detect white or yellow lane markings and alerts the driver when the vehicle is about to deviate from its lane.
• Drive-start Control limits sudden starts or sudden acceleration during gear-shift operation.
• A Blind Spot Monitor uses radar to detect vehicles in adjacent lanes and helps rear view confirmation when changing lanes.

3. Mirai’s immediately recognizable design

Toyota Mirai, Exterior :

A new technique has been employed in the front face design to emphasize the left and right grilles that draw in air for the oxygen supply and for FC system cooling. The novel front face underscores the vehicle’s individuality.

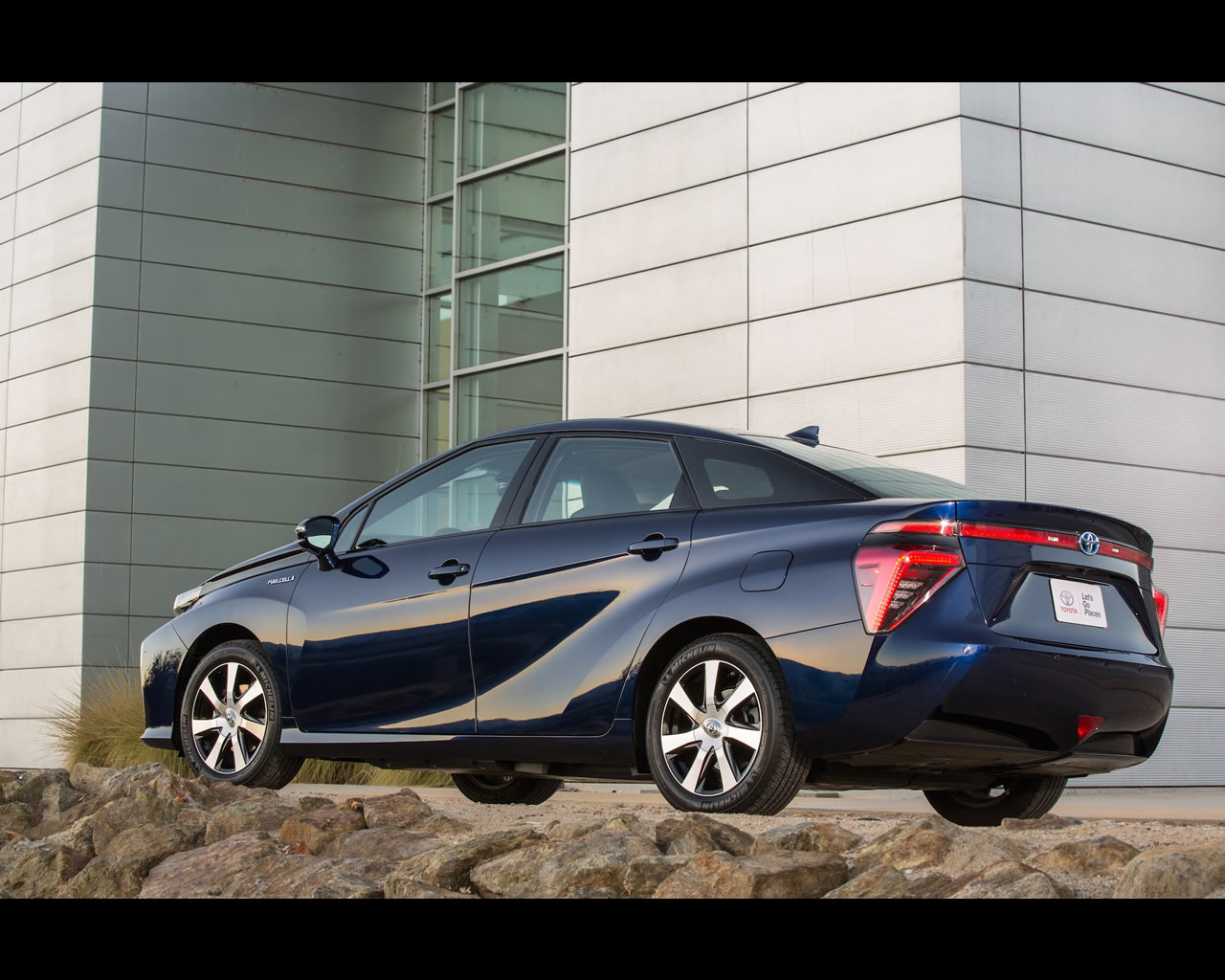

The elegant side profile evokes the flowing shape of a droplet of water to express the vehicle’s characteristic of drawing in air and emitting water. The roof-side rails and hood appear to pop out of the body to create the impression of a low-to-the-ground vehicle while communicating a futuristic feeling.

The rear of the vehicle presents a bold profile with a trapezoidal shape extending from the license plate garnish to the bottom of the bumper corners and out toward the wheels, while the top of the bumper emphasizes width and expresses a powerfully stable stance. It also creates an agile and clean impression of air passing through and under the bumper.

The headlights exhibit high-tech and sophisticated luxury through a novel design that presents an ultra-thin profile with an inline arrangement of four LED lights plus visible heat sinks and other optical equipment. The front turn signals and clearance lights are separate from the headlights, contributing to an ultra-thin headlight profile at the same time as merging with the side grilles. This creates an advanced clean design with aerodynamics that improve airflow.

The Mirai comes with 17-inch aluminum wheels that have been made lighter using an engraving process(7).

Toyota Mirai, Interior :

The Mirai’s profile connects the front and rear in a seamlessly pleasant expression of space. It creates a sophisticated cabin space with soft padding on door trims and other interior surfaces, and a high-luminance silver finish throughout.

The front seats provide superior body fit and hold through an integrated cover/seat foaming production process(8). Eight-way adjustable power seats for achieving the optimal seat position and a motorized lumbar support function are installed as standard on the driver’s and passenger’s seats.

The center meter cluster located in the central top level of the instrument panel includes a speedometer and multi-information display using a 4.2-inch high-definition TFT liquid crystal display with a design that appears to pop out. The driver is able to change the display using steering-wheel-mounted controls.

Seat heater switches and other controls are operated via an electrostatic air conditioning control panel by lightly touching the flat panel display.

Functions that provide a comfortable interior space come as standard, such as a steering wheel heater and seat heaters (two temperature settings on all seats) that provide instant heat while greatly reducing power consumption, fully automatic left and right independent temperature control air conditioning with eco mode switches, and “Nanoe” air purification technology to fill the cabin with fresh air.

Toyota Mirai, Package

Battery layout enables abundant trunk storage space.

4. Superior handling stability and outstanding quietness enhances driving pleasure

The high output Toyota FC Stack and optimal battery power control drive the electric motor and ensure powerful responsiveness at all vehicle speeds. This provides an immediate increase in torque at the first press of the accelerator, and powerful and smooth acceleration thereafter.

Handling stability and ride comfort are both improved through the location of major parts such as the Toyota FC Stack and high pressure hydrogen tanks centrally under the floor to achieve a low center of gravity and superior front-and-rear weight distribution, as well as the use of a high-rigidity body, which features enhanced rigidity around the rear suspension.

The full under-floor cover and aerodynamically designed clearance lights reduce wind resistance and contribute to improved fuel efficiency and handling stability. Aero fins employed at the side of the rear combination lamps also improve straight-driving stability.

Outstanding quietness is achieved by electric motor drive at all speeds and reduced wind noise, plus full sealing of all body parts, and the use of sound-absorbing and sound-blocking materials optimally arranged around the cabin, including the use of noise-reducing glass for the windshield and all door windows.

The “Bs” (brake support) mode makes efficient use of regenerative braking and improves braking performance when the driver wishes to greatly reduce vehicle speed such as when negotiating long downhill sections of road.

Mirai Main Vehicle Specifications :

   Toyota Mirai hydrogen fuel cell 2015 : Wallpapers

Toyota Mirai hydrogen fuel cell 2015 - Related reviews :

Toyota FCV R Hydrogen Fuel Cell Electric Sedan Concept for 2015
Toyota FCV Hydrogen Fuel Cell Electric Concept and Interview with Yoshikazu Tanaka
Alternative Propulsion : Hydrogen Fuell Cell cars reviews

Notes :
1 Japanese for future
2 Sales will begin in areas where hydrogen stations are in place and in surrounding areas.
3 As measured by Toyota when refueling at a hydrogen station supplying hydrogen at a pressure of 70 MPa under the SAEe J2601 Standard conditions (ambient temperature: 20°C, hydrogen tank pressure when fueled: 10 MPa). Time will vary depending on hydrogen fueling pressure and ambient temperature.
4 Channels arranged in a fine three-dimensional lattice structure. Enhances the dispersion of air (oxygen) thereby enabling uniform generation of electricity on cell surfaces.
5 As of November 2014, according to TMC research.
6 Hydrogen storage mass per tank weight
7 Manufacturing process used to reduce the weight of aluminum wheels. Metal is shaved from the intersecting line between the disk and rim to reduce the weight of each aluminum wheel by approximately 500 grams.
8 In the previous process, seat pads were molded separately and then covered. In the foaming process, the seat covers are placed into molds and urethane material is directly inserted into them.
9 A trademark of Panasonic Electric Works Co. Ltd.
